Overview

CONFIGURE NOW

CREATE YOUR MASTERPIECE

COLOR OPTIONS

145

BASE WHEELS

COMPONENTS

DISCOVER UNLIMITED POSSIBILITIES

THE STORY BEHIND "UNLIMITED"

BBS Unlimited offers almost endless possibilities when it comes to designing wheel systems. These three main features are represented in the BBS Unlimited logo.

UNLIMITED DIMENSIONS

Numerous wheel sizes, wheel widths, and concavities can be individually combined for the front and rear axles.

UNLIMITED FIT

An unprecedented variety of applications and combinations. With just a few basic components and flexible adjustment of the offset.

UNLIMITED STYLE

Countless style options for customizing your wheels.
Create your own masterpiece with our style components.

THE WHEEL REVOLUTION IS HERE

Discover our unparalleled wheel system, perfected down to the finest detail. BBS Unlimited solves everyday problems, enabling customers to design their own unique wheel.

Flexible wheel widths for all cars[1]

Every BBS Unlimited wheel is available in wheel widths from 8" up to 12"

Precise steps of the rim offset[2]

With the BBS Unlimited Hub Adapters, the rim offset can be adapted in precise 3mm or 5mm steps.

Light-alloy wheels available in up to four concavities

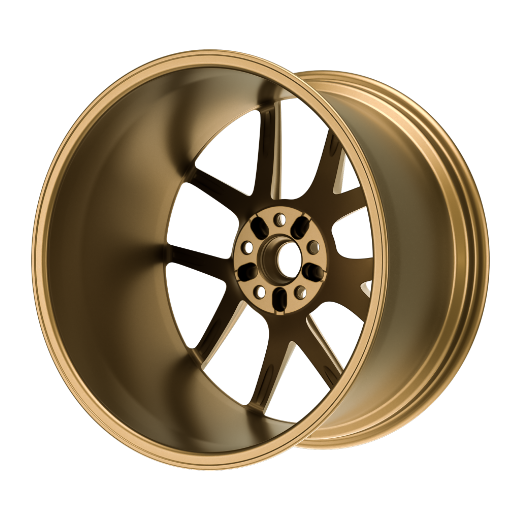

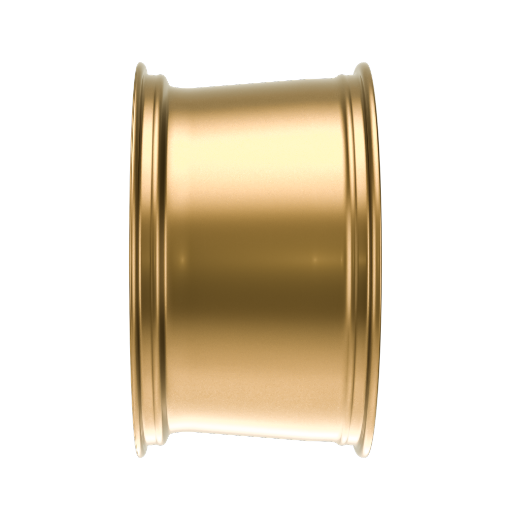

Basis of the BBS Unlimited wheel system are the so-called base wheels, which are available in numerous different dimensions.

Available for all 5-hole bolt patterns[3]

With the BBS Hub Adapters, the base bolt pattern can be adapted.

UNLIMITED WHEELS

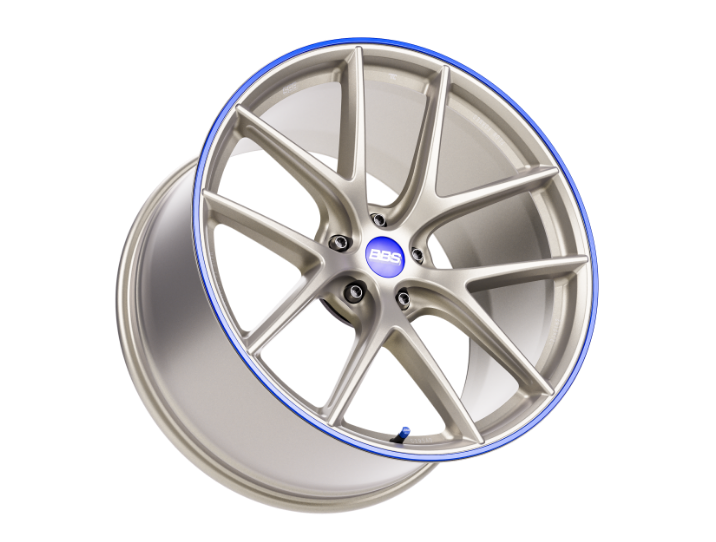

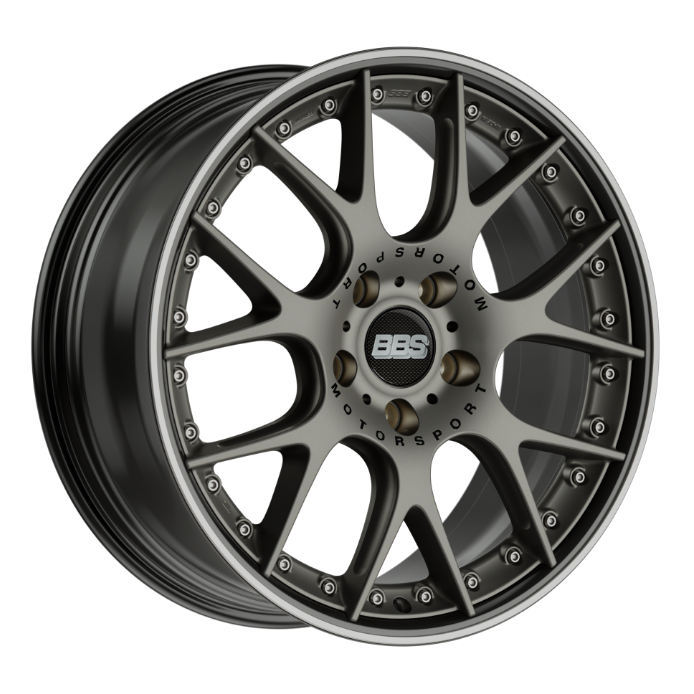

CI-R

21.600 style options

Unlimited mounting system

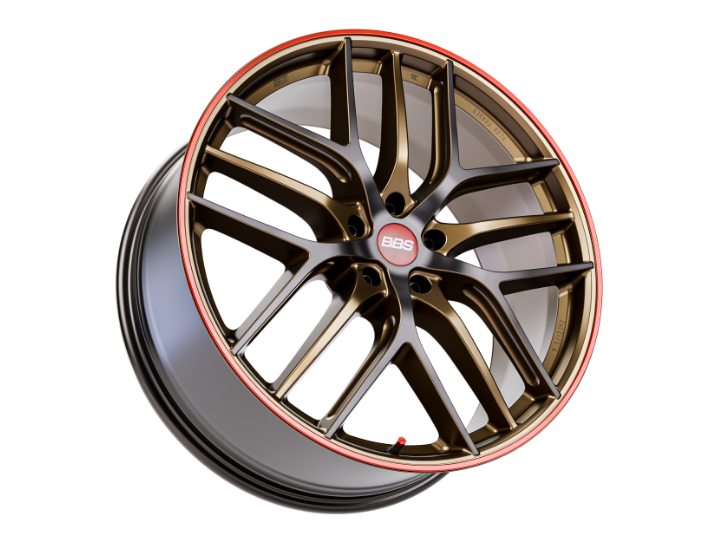

CC-R

13.500 style options

Unlimited mounting system

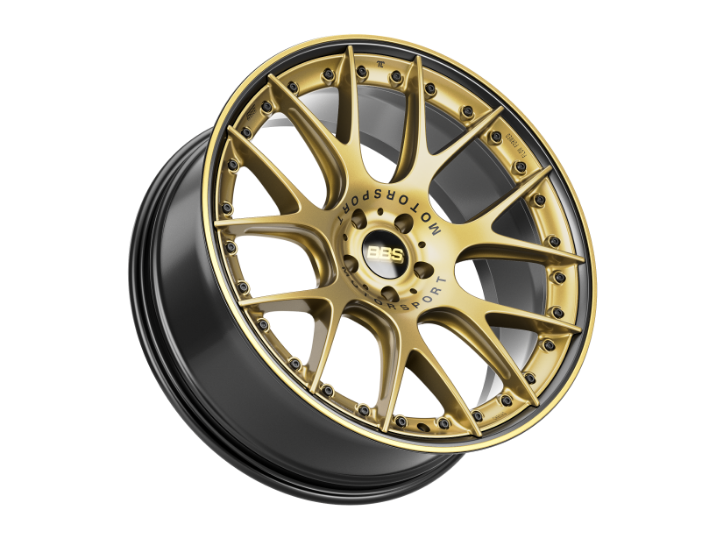

CH-R II

345.600 style options

Unlimited mounting system

MORE COMING SOON

THE NEW WORLD OF WHEELS

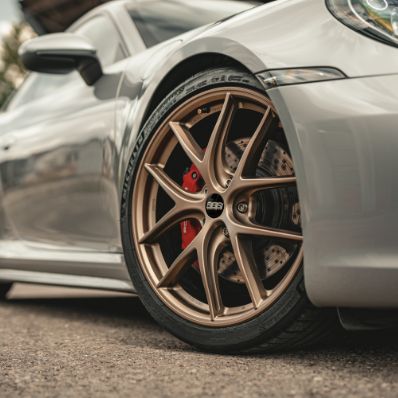

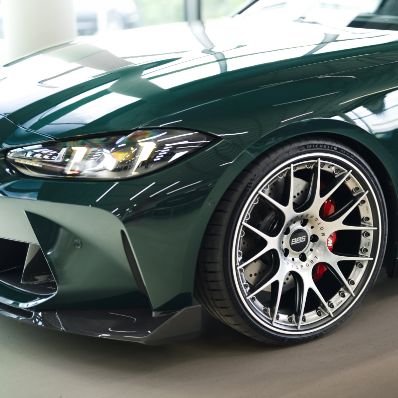

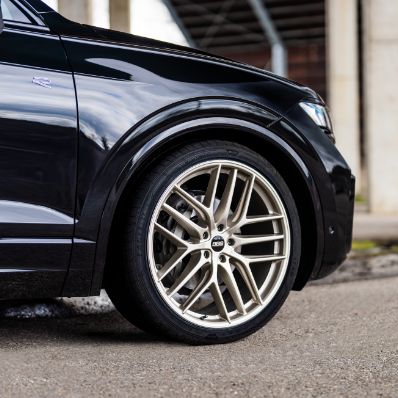

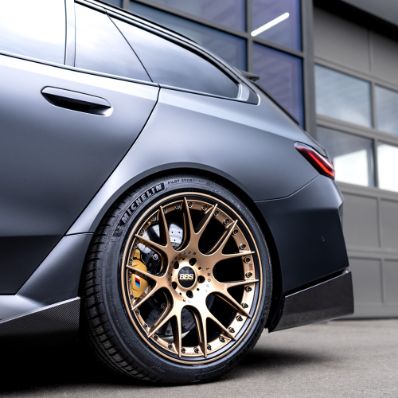

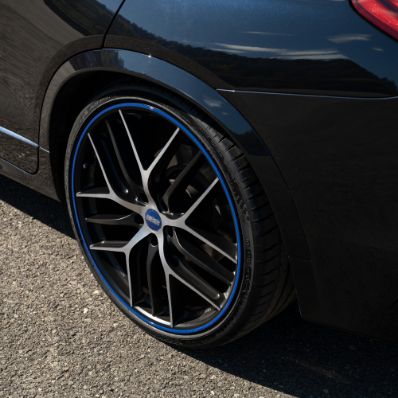

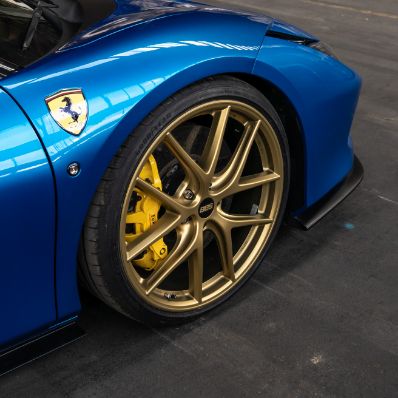

UNLIMITED WHEEL GALLERY

SHOW FULL GALLERY

UNLIMITED

DIMENSIONS

BASE WHEELS COMPATIBLE WITH EVERY VEHICLE TYPE

Numerous wheel sizes, wheel widths, and concavities can be individually combined for the front and rear axles.

CONFIGURE NOW

THE COMPARISON

LIMITED VS UNLIMITED

Fixed-drilled base wheel

TECHNOLOGY

Flow Forming

WHEEL WIDTHS

CONCAVITIES

WHEEL LOAD

up to 825 kg

WEIGHT

from 11 kg

SIZES

19” - 20”

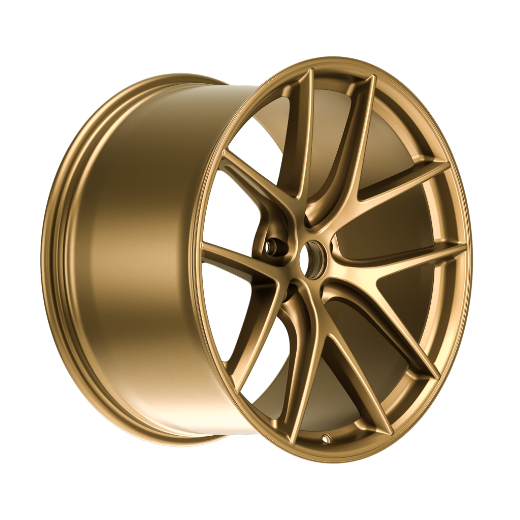

Unlimited base wheel

TECHNOLOGY

Flow Forming

WHEEL WIDTHS

CONCAVITIES

WHEEL LOAD

up tp 1.146 kg

WEIGHT

from 10,6 kg

SIZES

19” - 22”

DIMENSION OVERVIEW

Manufactured using the flow forming process

BBS Unlimited specific bolt pattern of 5x117,5

4 concavities with sizes ranging from 19" to 22"

Uniform center diameter Ø70mm

Weight optimization with increased wheel load

9 wheel widths ranging from 8 to 12

AVAILABLE UNLIMITED DESIGNS

Looking for your favourite wheel? Rest assured that we are constantly developing new applications, so yours will be available very soon!

CI-R

CC-R

CH-R-II

NEW DESIGNS

UNLIMITED

FIT

THE ONLY ADJUSTABLE WHEEL SYSTEM ON THE MARKET

Hub adapters in various sizes, a wide range of wheel and hub centering rings, and custom mounting hardware form the modular system of the BBS Unlimited System.

CONFIGURE NOW

THE COMPARISON

LIMITED VS UNLIMITED

Fixed-drilled base wheel

BOLT PATTERN

5 (fixed)

OFFSET

2 (fixed)

CENTERING RING

Aluminum

Fixed

Wheel designs cannot be further customized or transferred to other vehicles.

Unlimited base wheel

BOLT PATTERN

12 (customizable)

OFFSET

10 (customizable)

CENTERING RING

Patented composite material

Unlimited mounting system

Thanks to the patented mounting system, wheels can be retrofitted and mounted on other vehicles.

BBS UNLIMITED

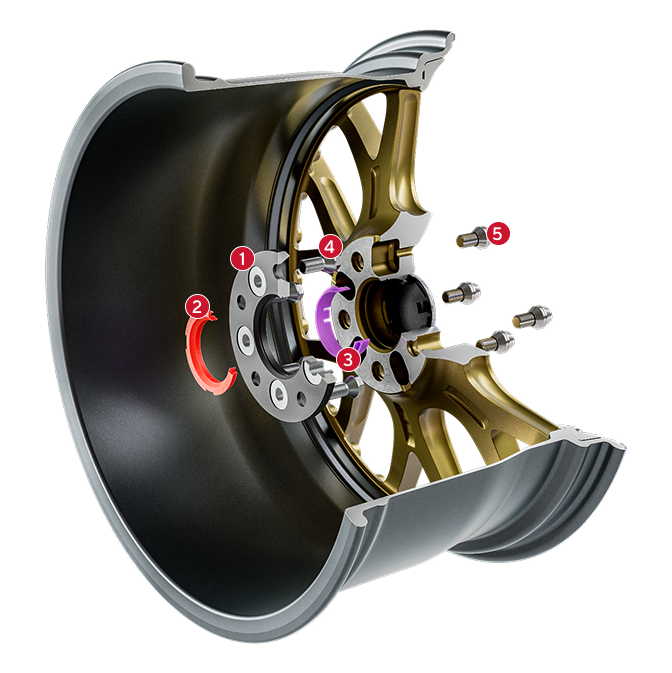

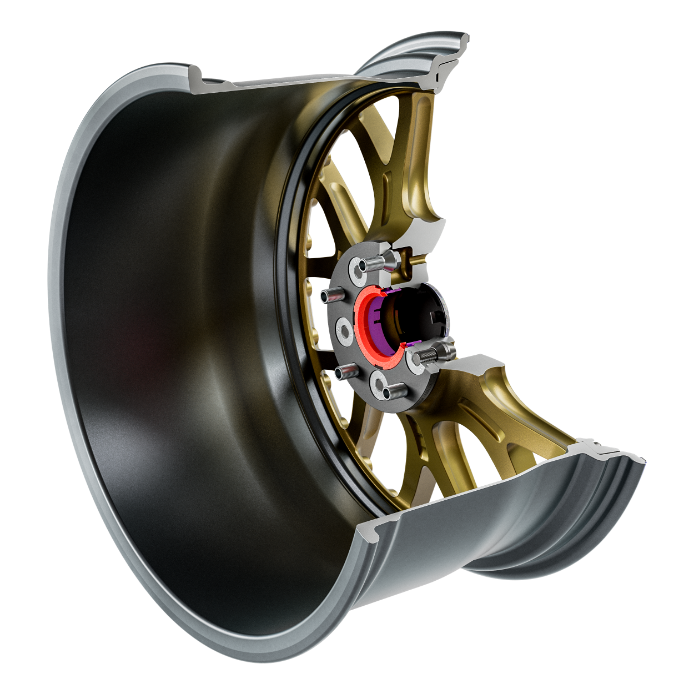

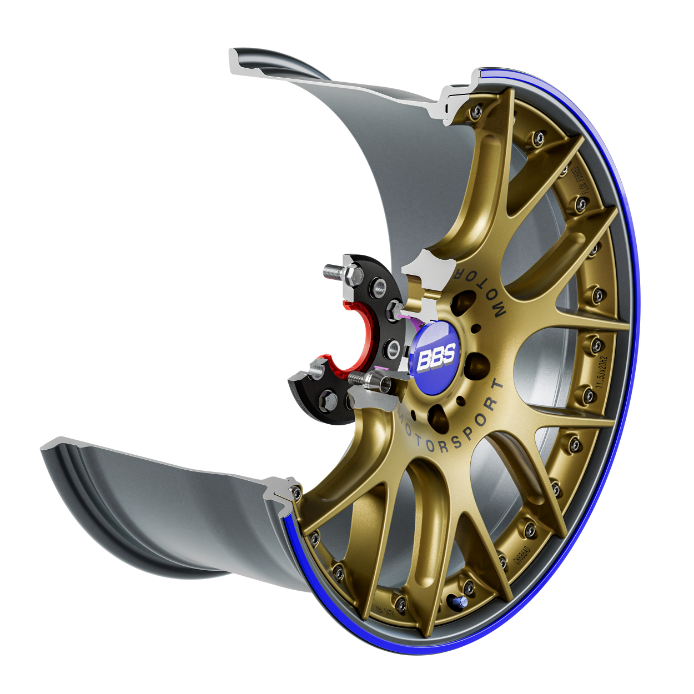

UNLIMITED FIT COMPONENTS AT A GLANCE

1. Unlimited hub adapter

Made from high-quality aluminum alloy, they adapt the BBS-specific bolt circle of the wheel to the bolt circle of the vehicle.

2. Unlimited hub centering ring

The ring is available in more than 20 vehicle-specific hub diameters. It guarantees perfect centering of the hub adapter on the wheel hub.

3. Unlimited wheel centering

The adapter is available in two sizes: 70 mm to 77 mm and 70 mm to 68 mm. These dimensions guarantee perfect centering of the wheel on the hub adapter.

4. Unlimited hub connector

Hub connectors are used to securely attach the hub adapter to the wheel hub of the vehicle.

5. Unlimited wheel bolts (Titanium)

Our titanium wheel bolts are durable and reusable even after many years of use. They are lightweight and promote maximum car performance.

UNLIMITED FIT COMPONENTS IN DETAIL

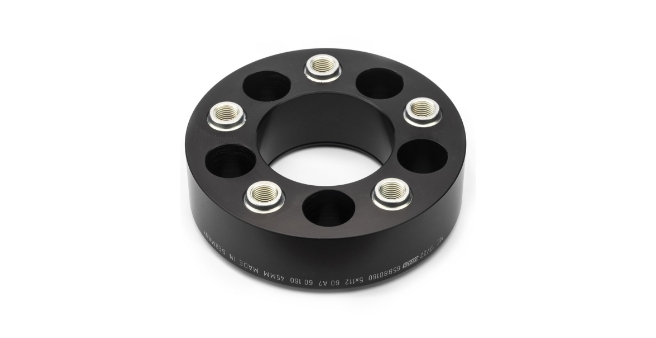

Unlimited hub adapter

Made from a high-quality aluminum alloy
Wheel-specific bolt pattern holes of 5x117.5 mm
Vehicle-specific bolt patterns
Bolt patterns: 5x100, 5x108, 5x110, 5x112, 5x114.3, 5x115, 5x120, 5x120.65, 5x127, 5x128, 5x130, 5x132

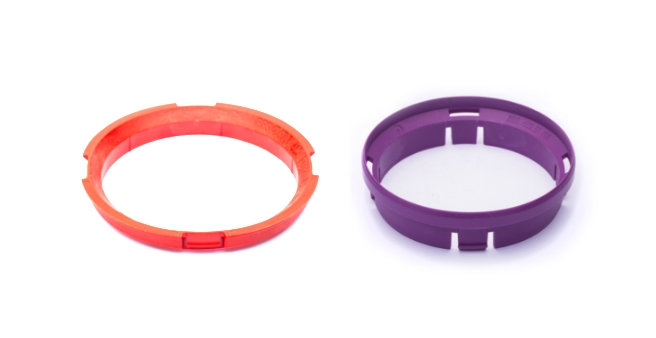

Unlimited centering rings

Conical shape and tolerance compensation studs
High-strength polyamide composite material
Prevents corrosion on wheel hub and hub adapter
More than 20 patented composite centering rings

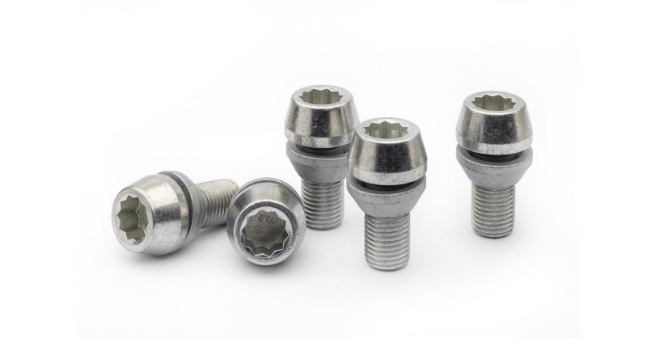

Unlimited wheel bolts

Unlimited inner multi-tooth prevents damage to the rim and provides theft protection
Loose cone collar compensates for tolerances and ensures constant surface pressure
Weight savings thanks to reduced thread length of 20 mm

AVAILABLE UNLIMITED DESIGNS

Looking for your favourite wheel? Rest assured that we are constantly developing new applications, so yours will be available very soon!

CI-R

CC-R

CH-R-II

NEW DESIGNS

UNLIMITED

STYLE

UNLIMITED INDIVIDUALITY

The perfect wheel must look good and fit well. BBS Unlimited offers a range of styling options to help you create a unique base wheel. Our range includes rim protection rings in various colours, center caps in a variety of designs, coloured valve caps, and different wheel bolt designs.

CONFIGURE NOW

THE COMPARISON

LIMITED VS UNLIMITED

Fixed-drilled base wheel

WHEEL COLORS

Standard

CENTER CAPS

Standard

RIM PROTECTOR RINGS

Standard

WHEEL BOLT DESIGNS

Standard

VALVE CAPS

Unlimited base wheel

WHEEL COLORS

up to 93 color options

CENTER CAPS

RIM PROTECTOR RINGS

WHEEL BOLT DESIGNS

VALVE CAPS

IT'S IN THE DETAILS

SWAP STYLE COMPONENTS AS OFTEN AS YOU LIKE

Just like the wheel itself, you can also customize the style components to suit different vehicles.

Rim protection rings, center caps, valve caps, and wheel bolts can be ordered individually in various colors.

UNLIMITED RIM PROTECTION RINGS

No need to worry about unwanted curb contact. BBS Unlimited rim protection rings offer protection for your Unlimited wheel and are available in numerous designs.

Replaceable at any time

Available in 18" - 22"

Easy mounting

YOUR WHEEL - YOUR STYLE

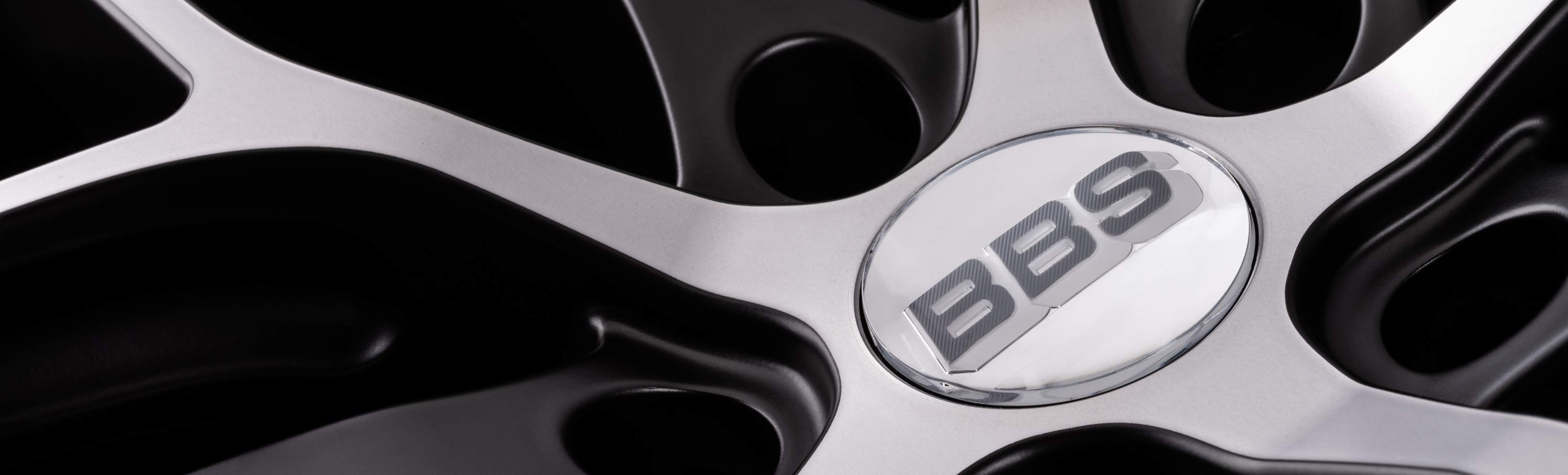

UNLIMITED CENTER CAPS

Unlimited center caps

In addition to 3 different logo emblems, there are numerous colors available to match your customized Unlimited wheel.

Rotating center caps in Ø56 & Ø70,6mm

Our 3D rotating hub caps are guaranteed to catch eyes. Even at full speed, the BBS logo remains clearly visible.

2D Standard

2D est. 1970

3D Rotation

UNLIMITED VALVE CAPS

It's the attention to detail that turns your wheel into a masterpiece. The coloured valve caps with a laser-engraved BBS logo enhance your Unlimited wheel even further.
